Audit Trail

The audit trail answers one question: who changed this record, when, and what did it say before?

Every time a watched record is added, changed or deleted, an entry is written with the name of the user, the time, the computer it came from, and every field that changed - the value before and the value after. Entries are written by the database itself, not by the screens, so a change made anywhere is recorded. An entry can never be edited, by anybody; only the months kept take old ones away.

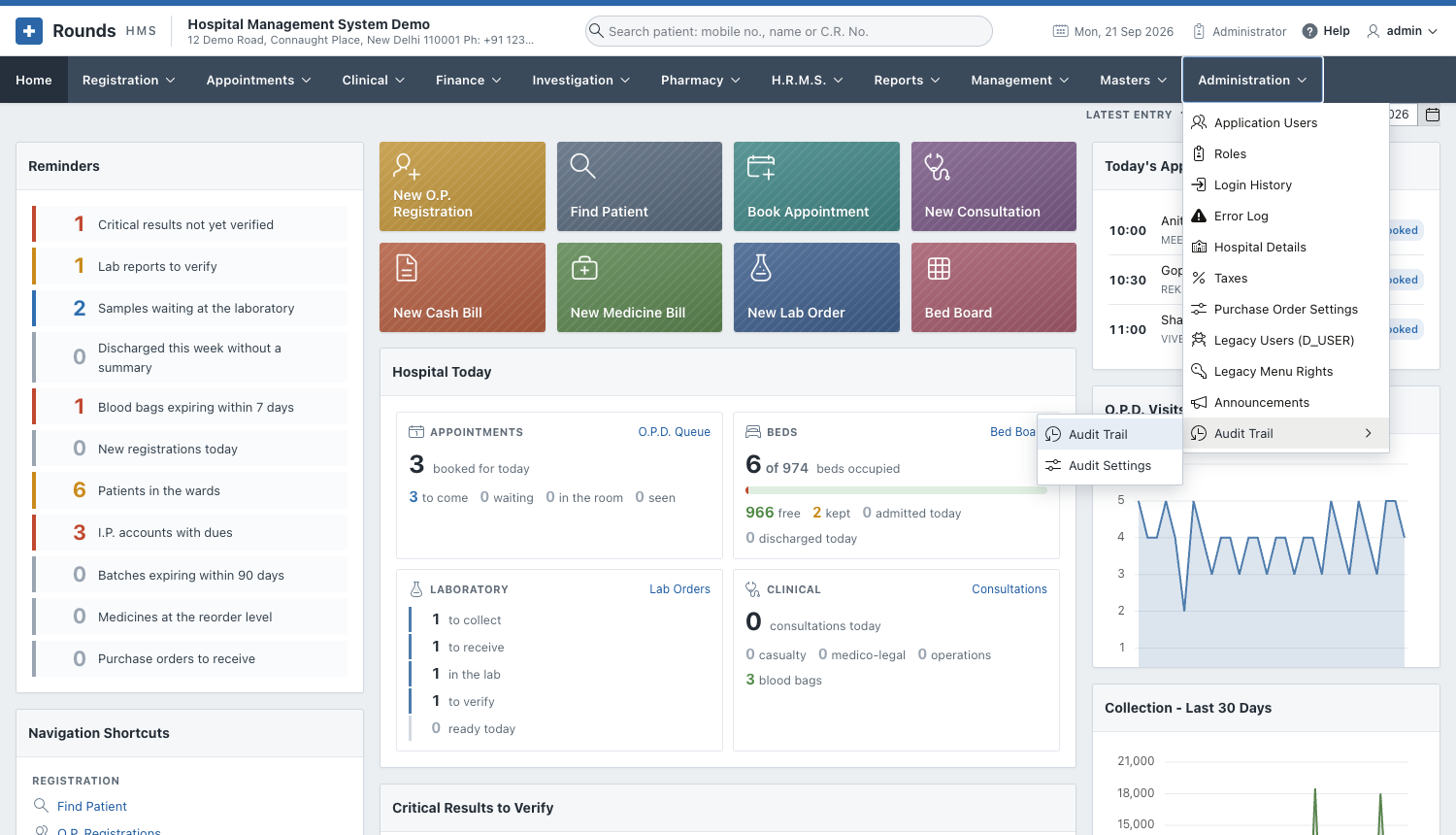

Administration > Audit Trail opens a submenu of two:

Option	Use it to
Audit Trail	Look for changes: by day, by user, by record, by number
Audit Settings	Choose what is recorded and for how long

This is separate from the two logs next to it: Login History records who signed in, and the Error Log records what went wrong. The audit trail records what was changed.

Looking for a change

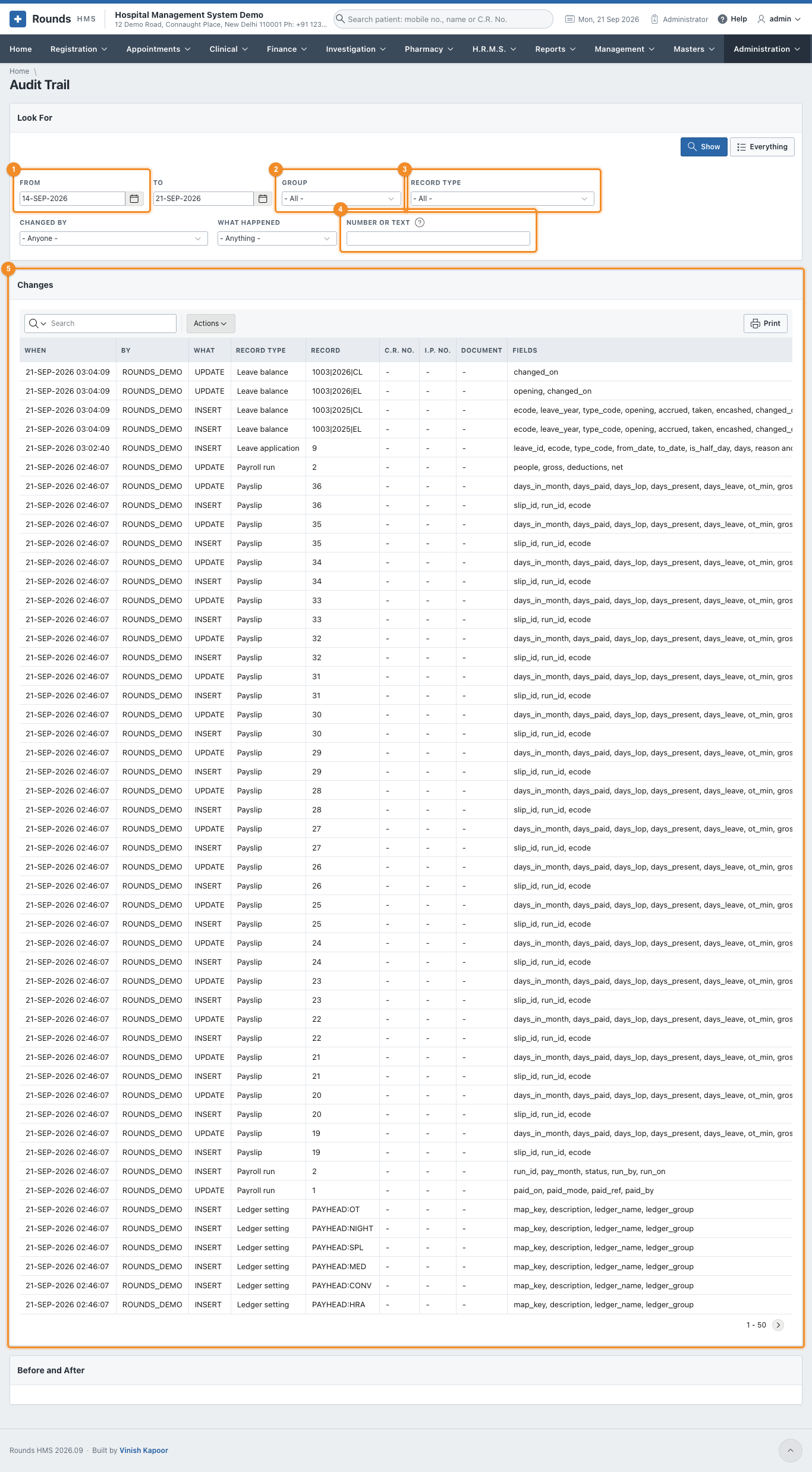

Administration > Audit Trail > Audit Trail opens on the last seven days:

1. 1 From and To: the days to look at.
2. 2 Group: money, patients, masters and settings, users and roles, or the clinical record.
3. 3 Record Type: one kind of record, e.g. Cash bill or Registration.
4. 4 Number or Text: a C.R. No., an I.P. No., a bill number, or a word from the names of the fields that changed.

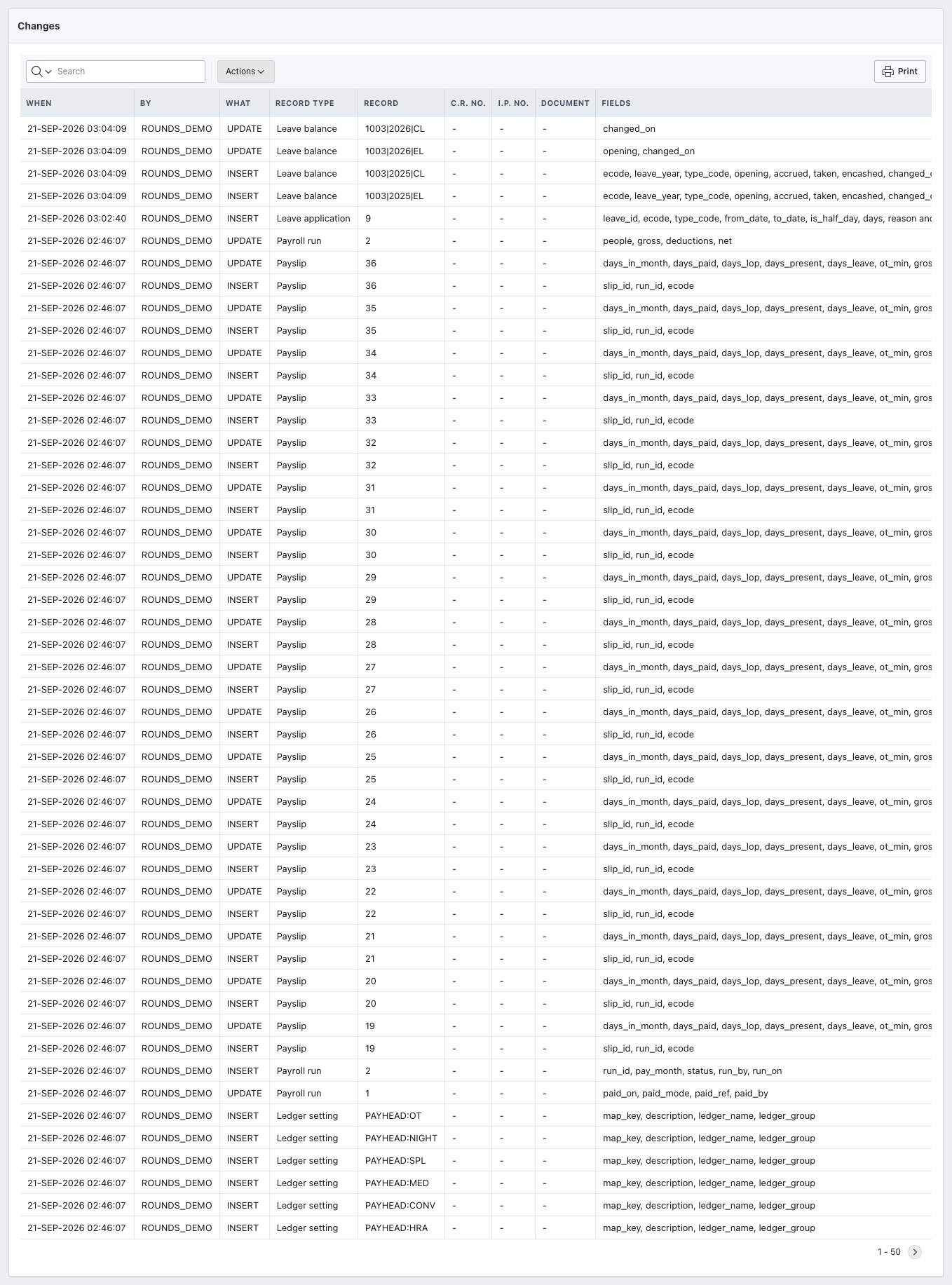

5. 5 The changes, newest first.

Changed By narrows it to one user, and What Happened to added, changed or deleted records. Show applies what you chose.

Column	What it holds
When	the day and the time, to the second
By	the user who was signed in
What	INSERT added, UPDATE changed, DELETE deleted
Record Type	what kind of record it was, e.g. Admission
Record	which record, by its own key
C.R. No., I.P. No., Document	the patient or the document it belongs to, where the record has one
Fields	the names of the fields that changed
Page, From	the screen it was changed on and the computer it came from

Use Actions on this list as on any other: to group, to sort, or to download what you are looking at.

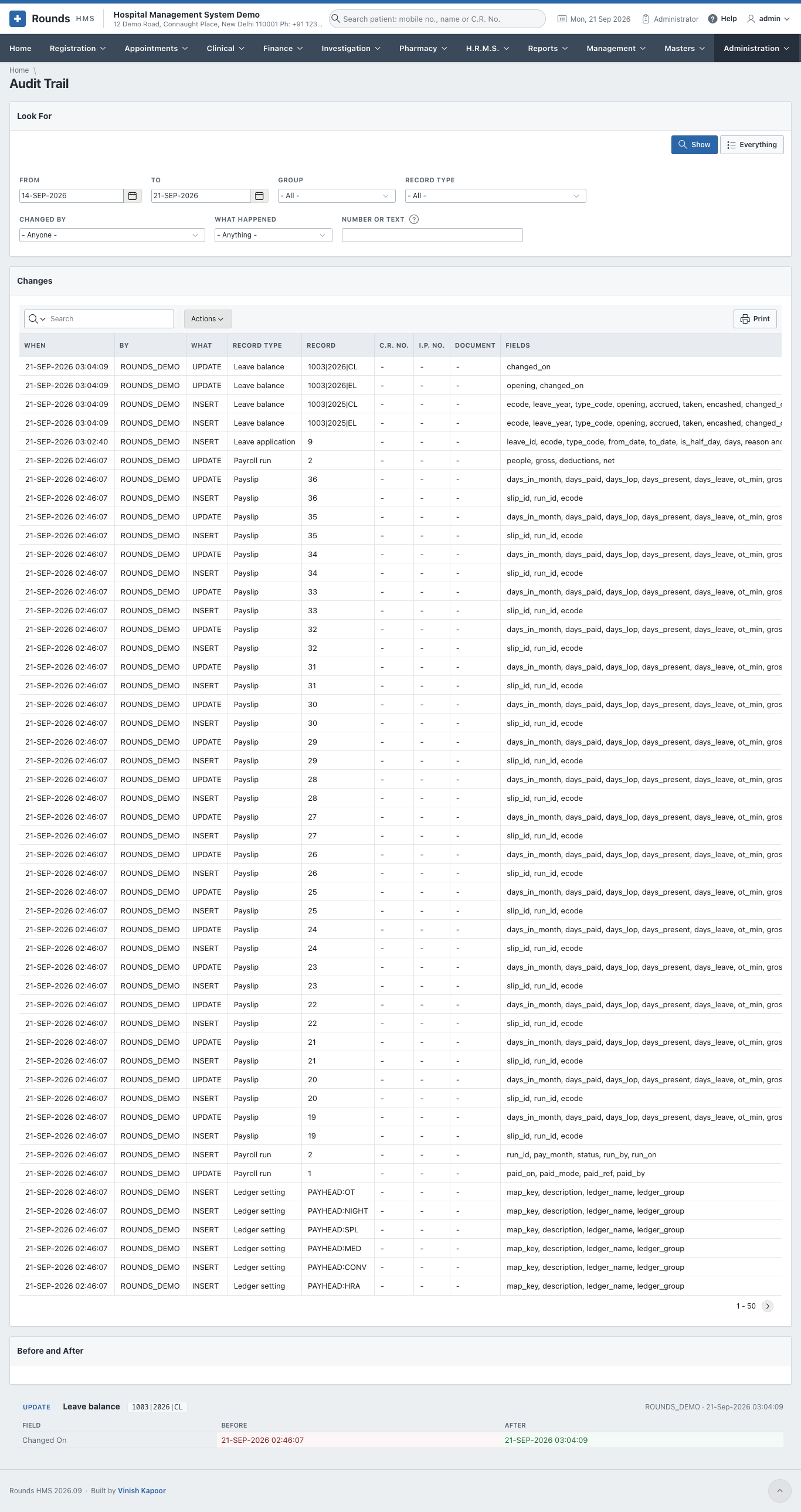

Before and after

Before and after on a row opens what actually changed:

Each field is on a line of its own: what it held before, and what it holds now. An added record shows all its fields as new; a deleted one shows everything it held. The line above gives the user, the time and the address of the computer.

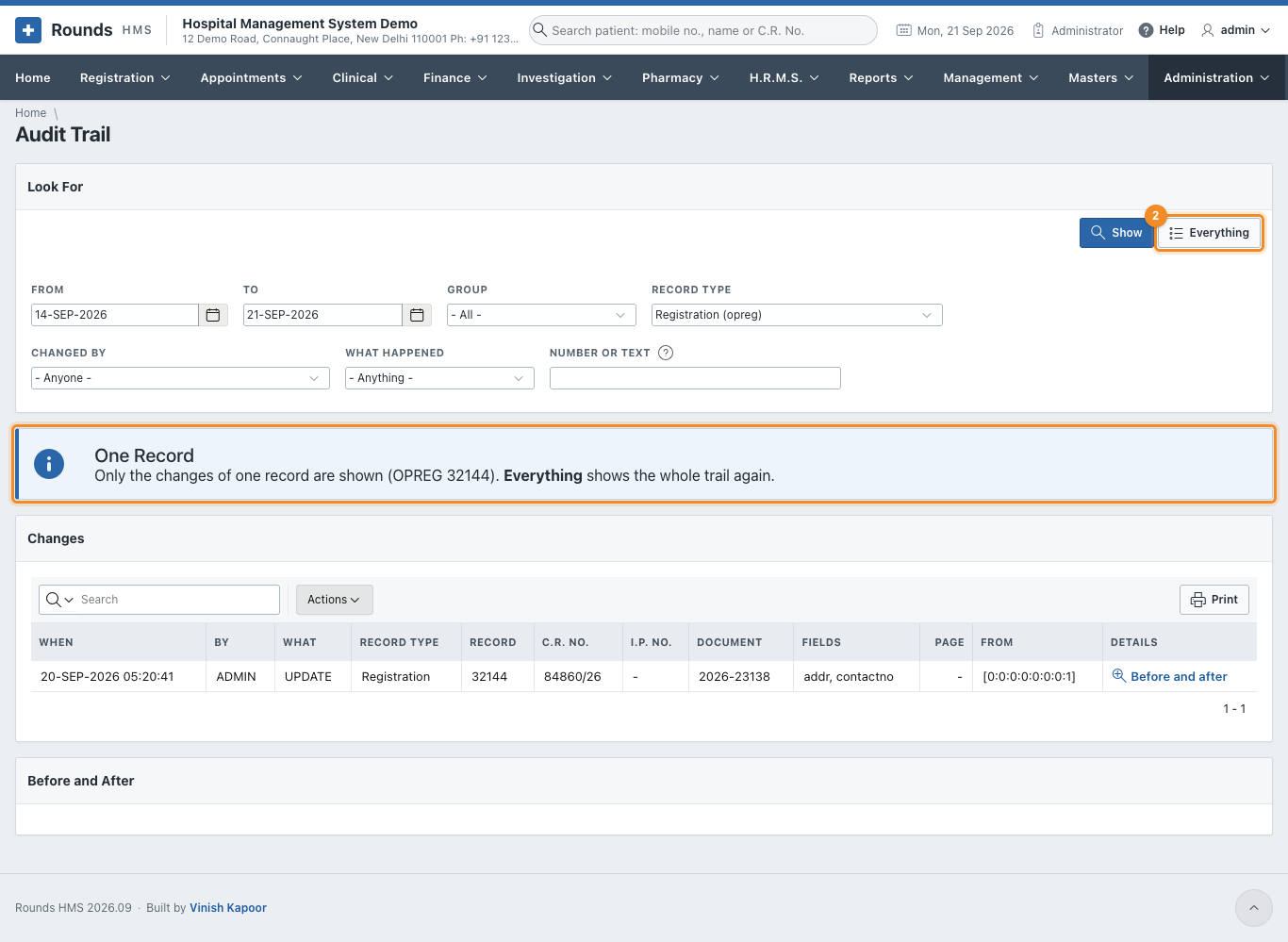

The history of one record

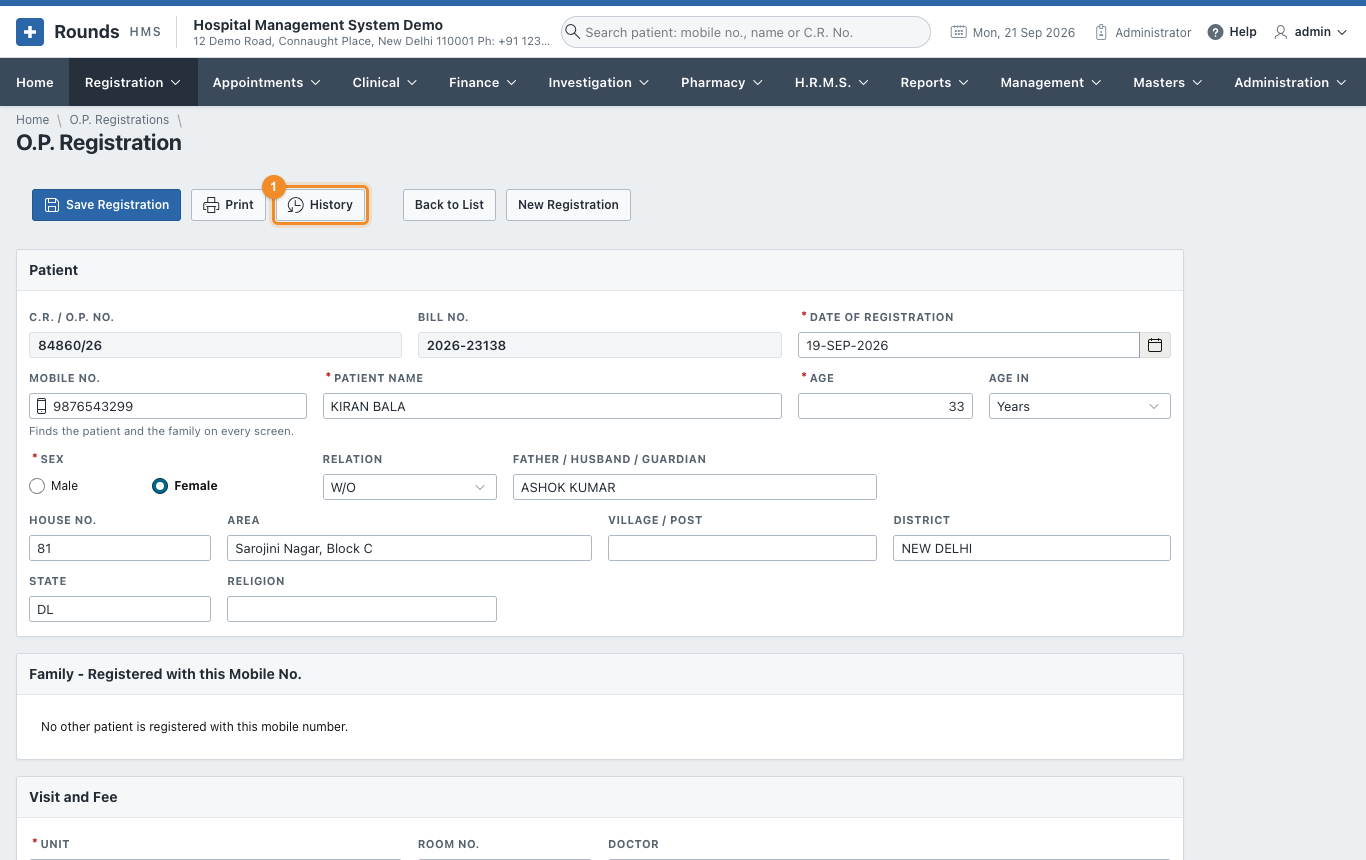

Record screens carry a History button, which opens the trail with that record already chosen:

1. 1 A note says whose history is shown.
2. 2 Everything goes back to the whole trail.

The settings

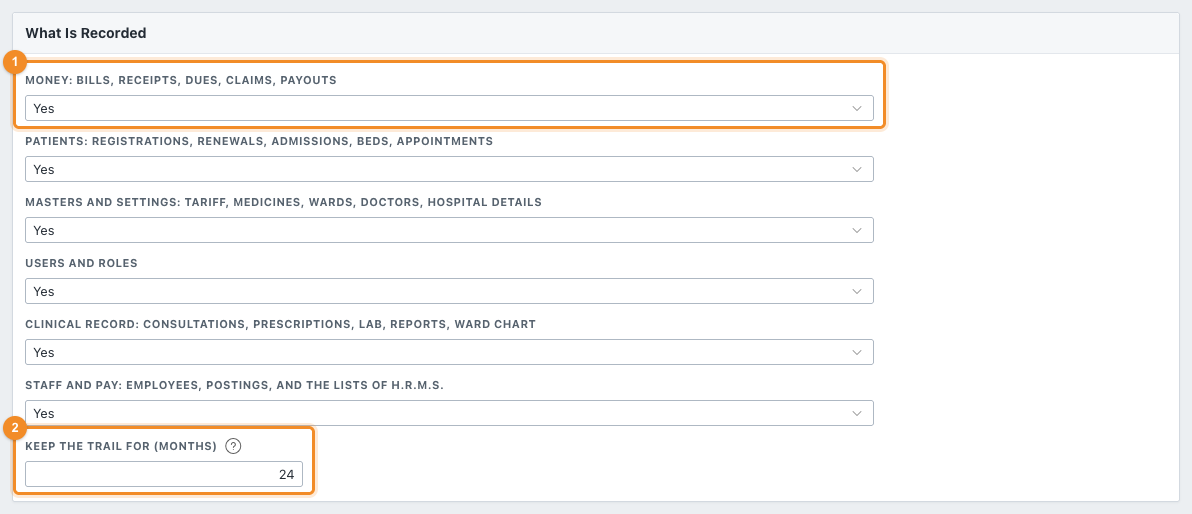

Administration > Audit Trail > Audit Settings decides what is kept:

1. 1 Five groups, each Yes or No:

   Group	What it covers
   Money	bills, receipts, dues, claims, payouts, day closing, stock movements
   Patients	registrations, renewals, admissions, beds, appointments and tokens
   Masters and settings	tariff, medicines, wards, doctors, taxes, hospital details
   Users and roles	who may use the application, and what they may open
   Clinical record	consultations, prescriptions, lab, reports, ward chart

2. 2 Keep the Trail for (months): 24 to begin with. Entries older than this are taken away on the first of each month.

1. 1 Save applies the switches and the months.
2. 2 Remove Old Entries Now takes away the entries older than the months kept, without waiting for the first of the month. It asks first.

Switching a group off removes the recording from its records, and switching it on puts it back. Nothing already recorded is lost either way.

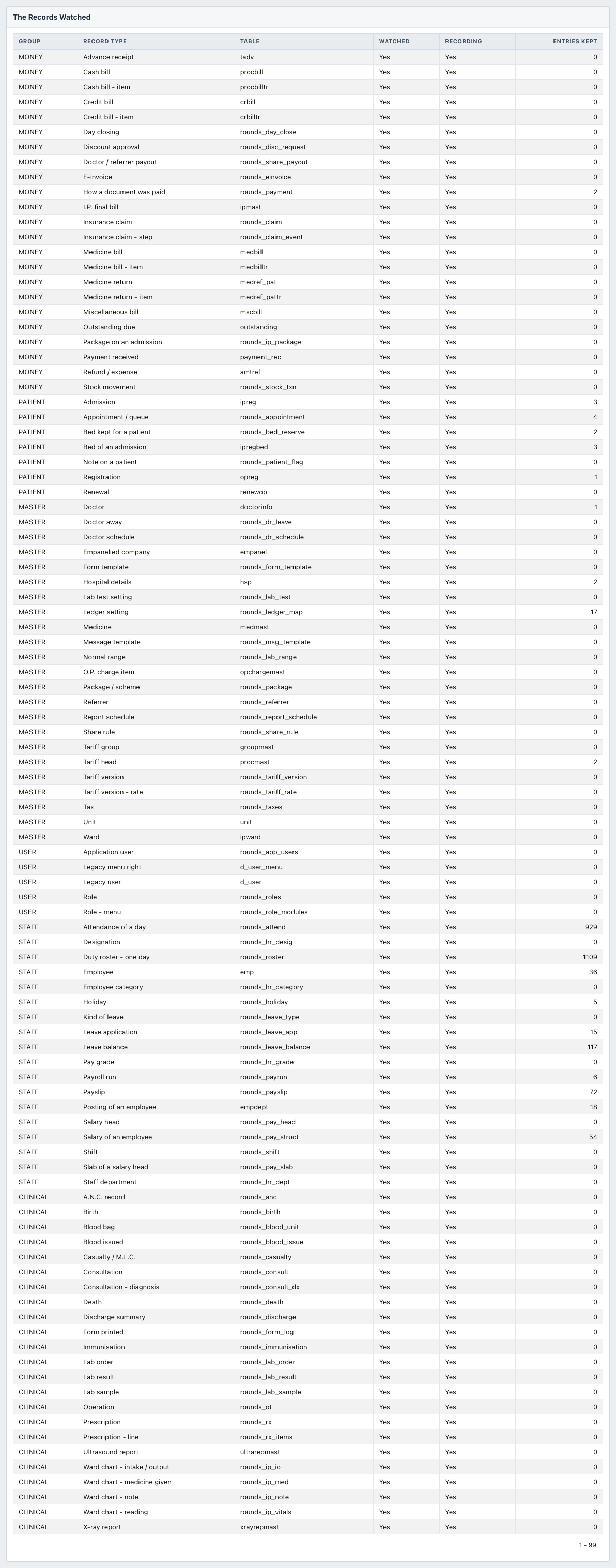

What is watched

The bottom of the screen lists every record type that can be watched, its table, whether it is switched on, whether it is recording at this moment, and how many entries are kept for it:

Recording is the useful one: it says Yes only when the database is really writing entries for that record. A row that is watched but not recording means the recording could not be put in place - the Error Log says why.

Switching a group off leaves a gap

While a group is off, nothing about it is recorded, and there is no way to find out afterwards what happened in that time. Leave the groups on unless there is a reason not to.

How much room it takes

An entry is small, but a busy hospital makes thousands a day. Twenty-four months suits most; a hospital that must keep changes longer for its own rules can raise it, and one short of room can lower it and click Remove Old Entries Now.

Something went wrong?

• A change is not in the trail: its group was switched off at the time, or the change is older than the months kept.
• The user is not who you expected: the trail records the user who was signed in on that screen. Work done by a scheduled job or straight in the database is recorded under the database user.
• A record type is watched but not recording: something stopped its recording being put in place - open Audit Settings, switch the group off and on again, and look at the Error Log if it still does not record - a recording that cannot be put in place writes a note there saying why.
